Get-IntuneManagementExtensionDiagnostics

This script analyzes Microsoft Intune Management Extension (IME) log(s) and creates timeline report from found events.

It also includes really capable -LogViewerUI for manual Intune log(s) viewing.

Go to script Get-IntuneManagementExtensionDiagnostics.ps1

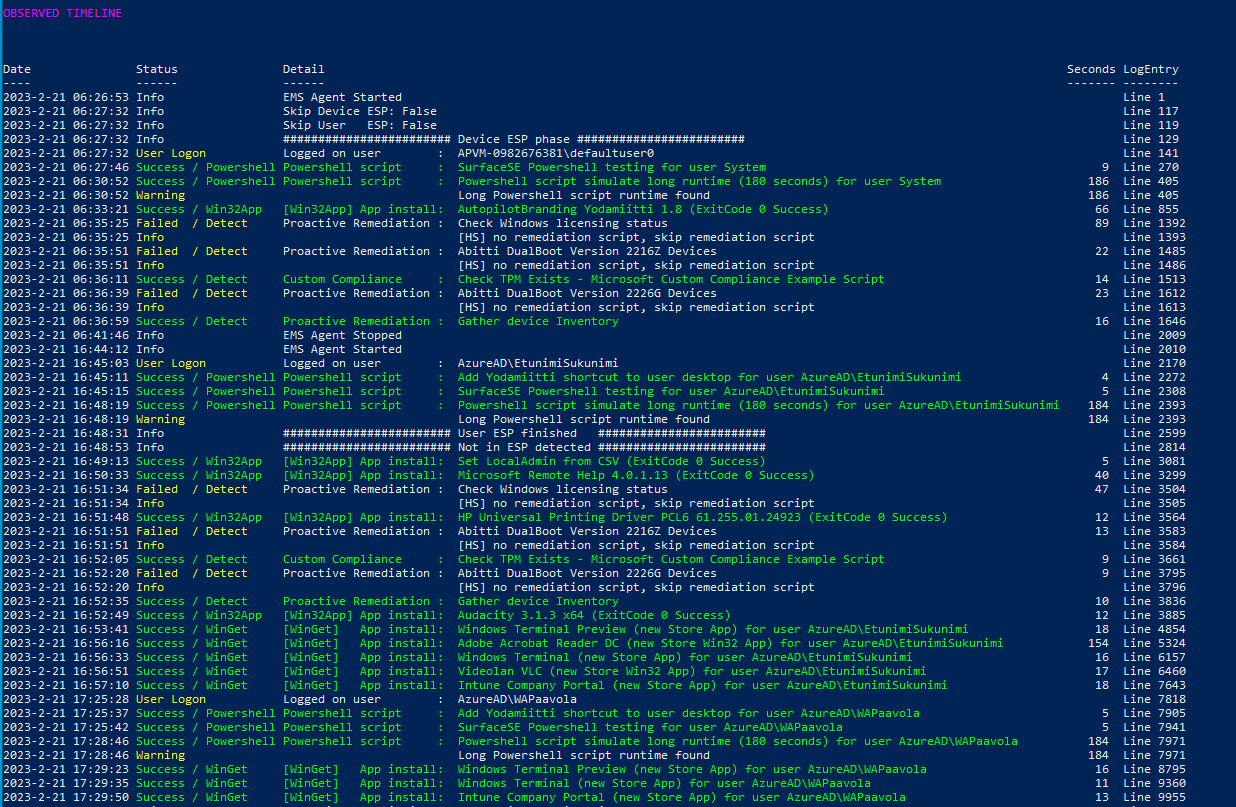

Timeline report includes information about Intune events

• Win32App
• WinGetApp
• Powershell scripts
• Proactive Remedation scripts
• custom Compliance Policy scripts

Windows Autopilot ESP phases and other information is also shown on timeline.

Usage:

Download script from PowershellGallery with command:

Save-Script Get-IntuneManagementExtensionDiagnostics -Path ./

Run script

./Get-IntuneManagementExtensionDiagnostics.ps1

# or to get Intune Powershell script names from Graph API
# use -Online parameter
./Get-IntuneManagementExtensionDiagnostics.ps1 -Online

-Online parameter will download Powershell script names from Graph API. Win32App and WinGetApp names are detected from Intune log files.
-Online parameter requires Intune Powershell management module Microsoft.Graph.Intune installation.

You can install Intune Powershell management module to your user account with command

Install-Module -Name Microsoft.Graph.Intune -Scope CurrentUser

In Windows Autopilot Shift-F10 Command Prompt during Windows Autopilot Pre-Provisioning or Enrollment Status Page

Powershell.exe
cd C:\ProgramData
Set-ExecutionPolicy bypass -Scope Process
Save-Script Get-IntuneManagementExtensionDiagnostics -Path ./
./Get-IntuneManagementExtensionDiagnostics.ps1

# -Online when you need to get displayNames to Powershell scripts
./Get-IntuneManagementExtensionDiagnostics.ps1 -Online

Parameters

.\Get-IntuneManagementExtensionDiagnostics.ps1 -Online -AllLogEntries -AllLogFiles

-AllLogEntries -AllLogFiles
Open all supported log files (IntuneManagementExtension and AgentExecutor) and also show all log events
These options prevents showing UI which asks same information

.\Get-IntuneManagementExtensionDiagnostics.ps1 -Online -AllLogEntries -AllLogFiles

-LogFile
Open log file specifying fullpath to logfile

./Get-IntuneManagementExtensionDiagnostics.ps1 -LOGFile -LOGFile "C:\temp\MDMDiagReport\IntuneManagementExtension.log"

-LogFilesFolder
Open log files folder and show UI where you can select what Intune log files to open

./Get-IntuneManagementExtensionDiagnostics.ps1 -LogFilesFolder "C:\temp\MDMDiagReport"

-ShowAllTimelineEntries
Shows start events on Timeline.

./Get-IntuneManagementExtensionDiagnostics.ps1 -ShowAllTimelineEntries

Intune Powershell scripts' outputs and errors can be also shown in Timeline view with parameters
-ShowStdOutInTimeline
-ShowErrorsInTimeline
This shows instantly what is problem with failed Powershell scripts

There are many more Parameters but these should get you started.

LogViewerUI - better than cmtrace.exe ?-)

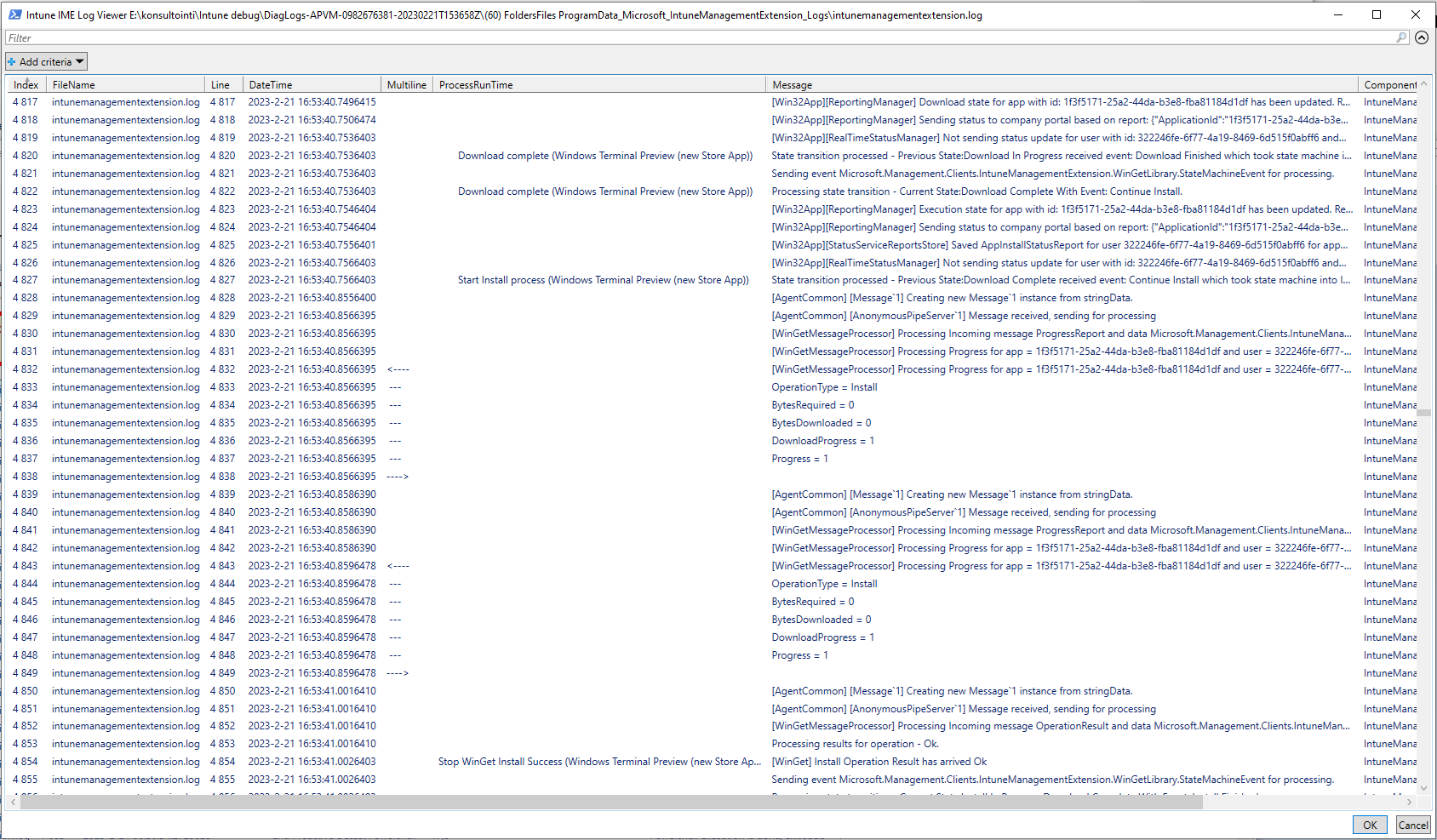

Script also includes really capable Log Viewer UI when script is started with parameter -ShowLogViewerUI

./Get-IntuneManagementExtensionDiagnostics.ps1 -Online -ShowLogViewerUI -ConvertAllKnownGuidsToClearText

LogViewerUI (Out-GridView) looks a lot like cmtrace.exe tool but it is better because all found Timeline events are added to log for easier debugging.

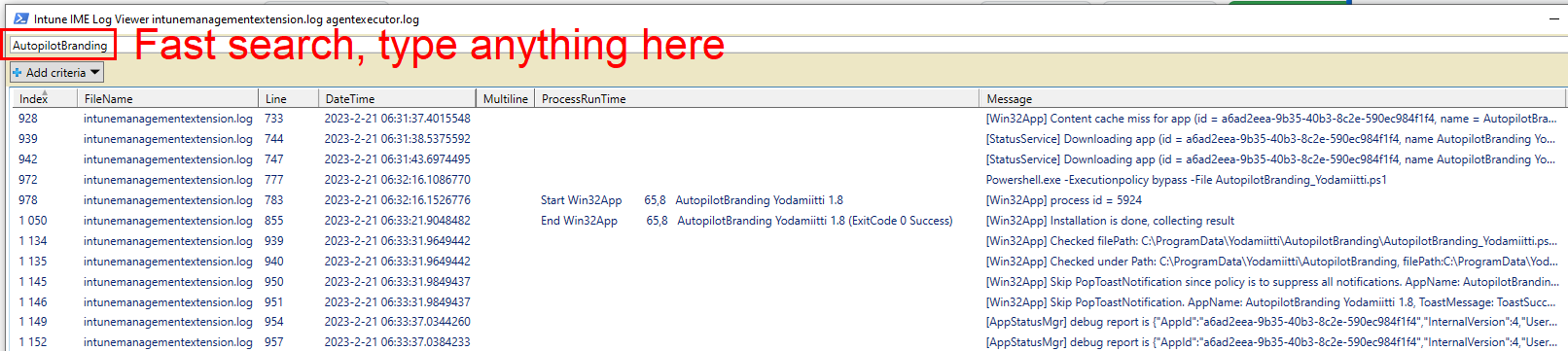

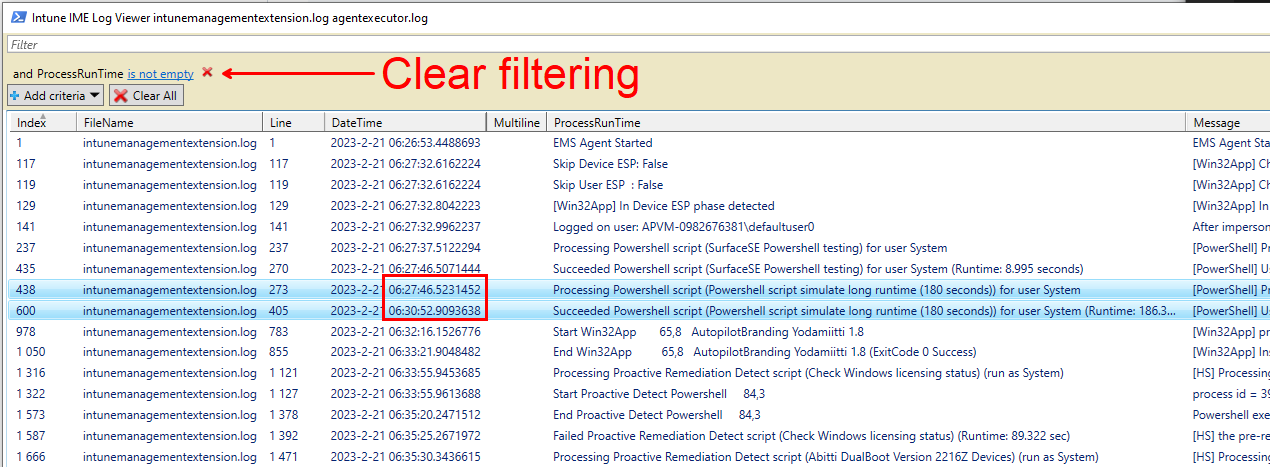

LogViewerUI has good search and filtering capabilities. Try to filter known log entries in Timeline:

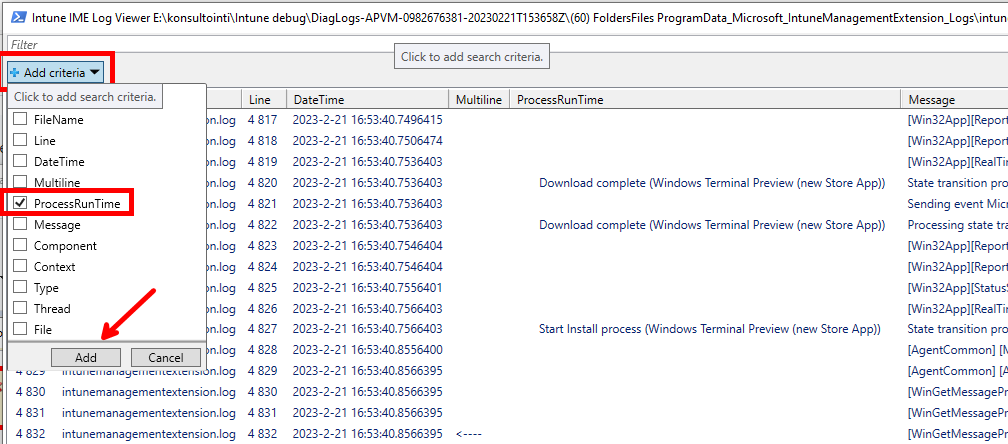

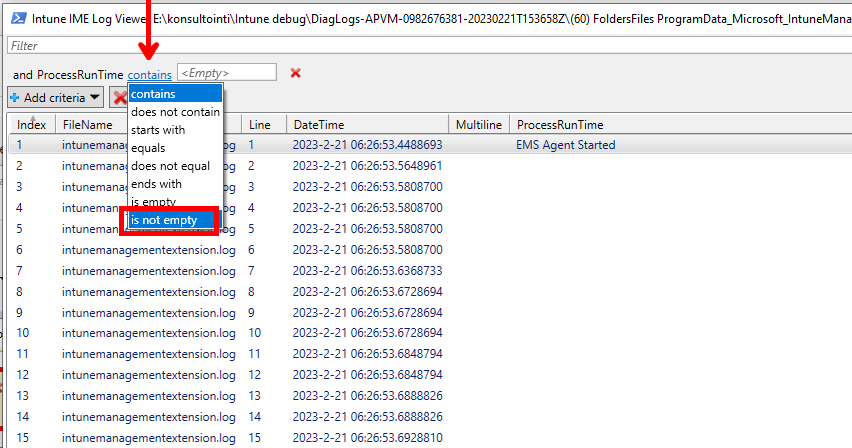

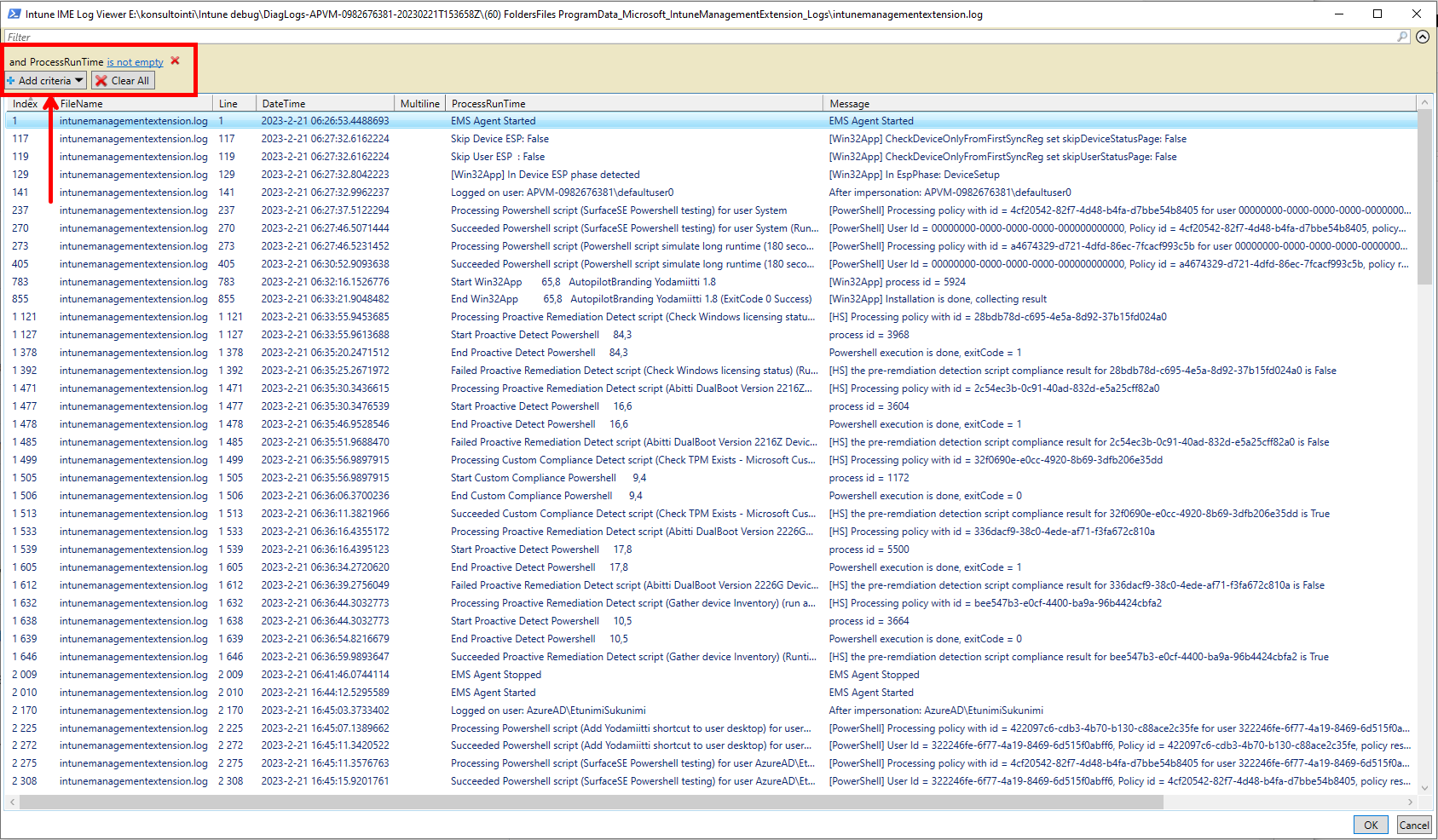

Add criteria -> ProcessRunTime -> is not empty

Selecting last line (RELOAD) and OK will reload log file.

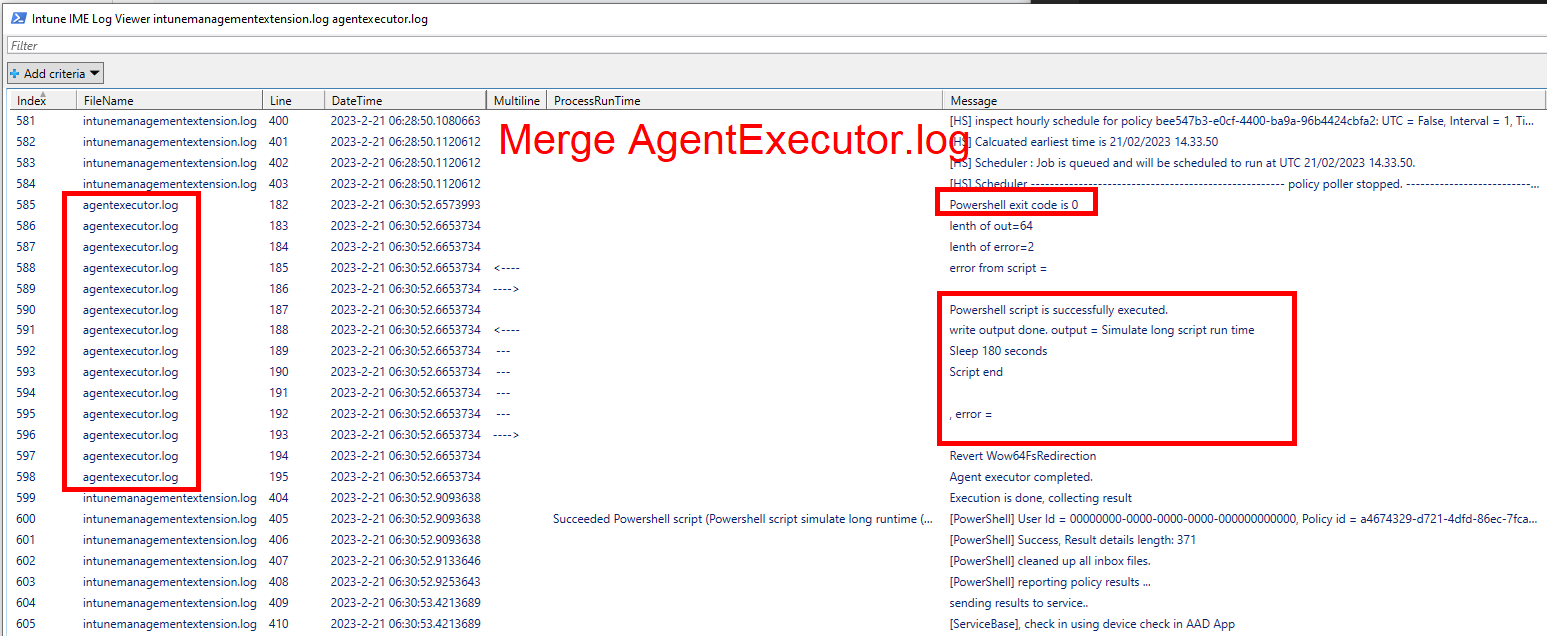

Script can merge multiple log files so especially in LogViewerUI you can see Powershell command outputs from AgentExecutor.log

Check screenshots

Backlog:

There are many features in development and planned in future. Stay tuned :)

Known issues:

• WinGetApp install may be detected falsepositive wrong. There is WinGet App install fail and empty App name and UserName in Timeline view.
  • Status: Fix is ready on next coming version
• Win32App Uninstall is shown as Install at least in Supercedende case
  • Verified that intent is not gathered right in Win32App and WinGetApp install/uninstall
  • • Status: Fix is ready on next coming version
